41 34 041 Replacing Tail Panel Stripping Operations

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.

Disconnect battery
Remove bumper trim
Remove bumper carrier
Remove center guide
Remove guide for bumper on left and right
Remove luggage compartment floor trim panel
Remove luggage compartment storage compartment
Remove tail panel trim at top
Remove left luggage compartment wheel arch panel
Remove right luggage compartment wheel arch panel
Remove striker for rear lid
Remove rear lights
Partially detach tailgate seal

NOTE: Operation is described on the left side. Right side identical.

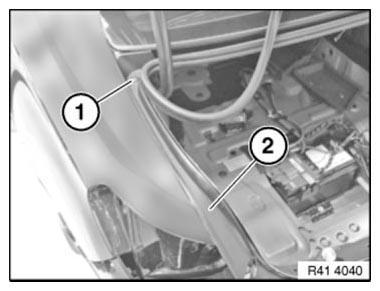

Lift out clip (1) and remove water channel cover (2).

Fig 1: Identifying Out Clip And Water Channel Cover

G08471472

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Operation is described on the left side. Right side identical.

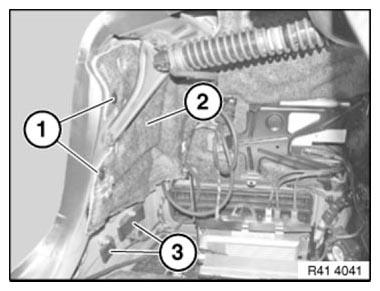

Lever out expanding rivets (1) and fold sound insulation (2) to one side.

Release nuts and remove ground support point (3).

Tightening torque: see 2AZ in 41 34 REAR TRIM PANEL .

Fig 2: Identifying Expanding Rivets, Sound Insulation Area And Ground Support Point

G08471473

Courtesy of BMW OF NORTH AMERICA, INC.

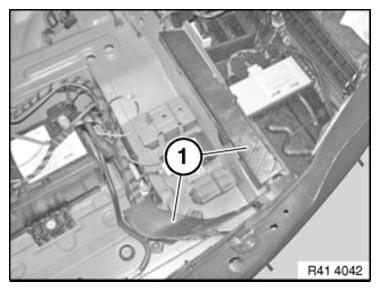

Release cable channel covers (1) and lay towards front.

Fig 3: Identifying Cable Channel Covers

G08471474

Courtesy of BMW OF NORTH AMERICA, INC.

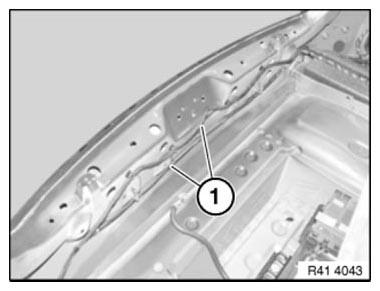

Release wiring harnesses (1) from rear trim panel and lay towards front.

Fig 4: Identifying Rear Trim Panel And Lay Wiring Harnesses

G08471475

Courtesy of BMW OF NORTH AMERICA, INC.

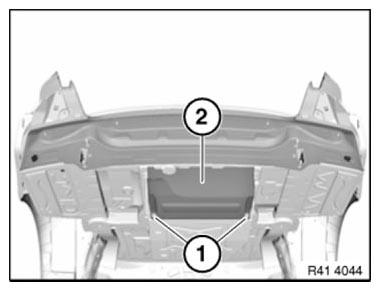

View from below.

Release nuts (1) and remove cover (2).

Fig 5: Identifying Tail Panel Nuts And Cover

G08471476

Courtesy of BMW OF NORTH AMERICA, INC.
