Removing rear trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Operation is partially described on the left side. Right side identical.

Release screws (1) and remove support (2).

Tightening torque: see 1AZ in 41 34 REAR TRIM PANEL .

Version with automatic tailgate activation:

Shut down AUTOMATIC READ LID ACTUATION .

IMPORTANT: Risk of damage to spindle drive: only move rear lid slowly by hand.
If necessary, remove spindle drive. See LEFT SPINDLE DRIVE or RIGHT SPINDLE DRIVE .

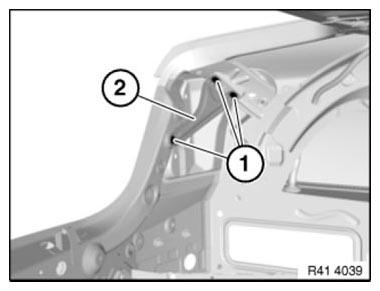

Fig 1: Identifying Tail Panel Screws And Support
G08471461Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Open weld joints in areas (2) from inside.

Remove rear trim.

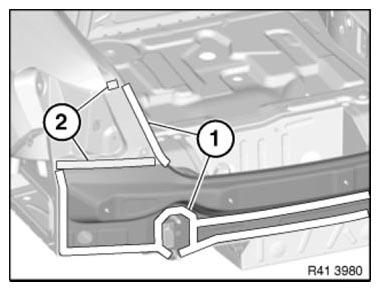

Fig 2: Identifying Welded Connections Areas And Weld Joints Areas
G08471462Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Slide in rear panel (1) from below in upward direction and adjust to fit and secure in conjunction with rear lid and rear lights.

NOTE: On vehicles with a sensor for lane change warning  See 51 12 825 REMOVING AND INSTALLING/REPLACING GUIDE FOR REAR CENTER BUMPER or 66 32 020 REMOVING AND INSTALLING/REPLACING SENSOR FOR LANE CHANGE WARNING ON LEFT OR RIGHT , also check the bumper guide for correct seating.

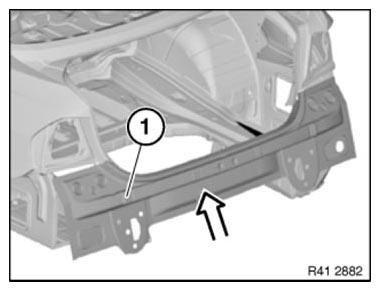

Fig 3: Sliding Rear Panel
G08471463Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Retaining screws must not be used in area (1)

In areas (2 to 5) set 4.2 mm dia. holes for blind rivets N3:

Area Number
2 1
3 4
4 4
5 3

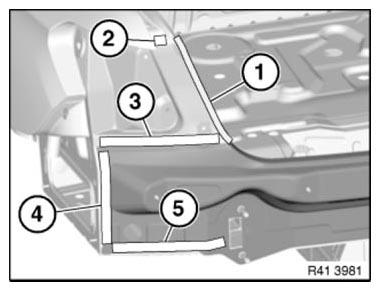

Fig 4: Identifying Blind Rivets Holes Areas
G08471464Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) set 8 holes for blind rivets N3. In so doing, drill the two outer holes from the inside outwards.

Then connect the outer holes on the outside with a line. Drill the remaining holes on the line from the outside.

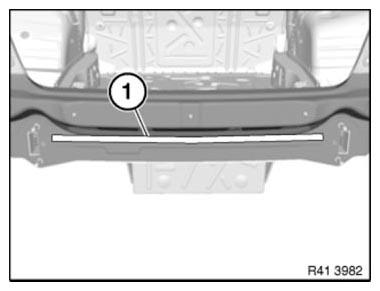

Fig 5: Identifying Blind Rivets Holes Area
G08471465Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) set seven Ø 4.2 mm bore holes for N3 blind rivets.

IMPORTANT: No blind rivets may be used in areas (2)!
Dimension A = 10 cm

Remove new part again and deburr bore holes.

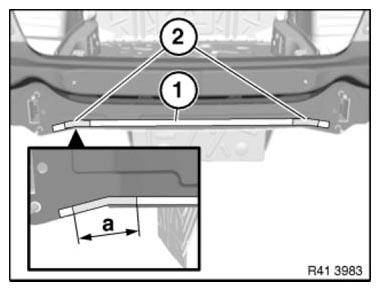

Fig 6: Identifying Blind Rivets Holes Area And No Blind Rivets Used Areas
G08471466Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Do not grind/sand new part in area of bonding surfaces.
