Installing rear trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Clean all bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces.

Make sure adhesive application is closed in area (1)! (watertightness).

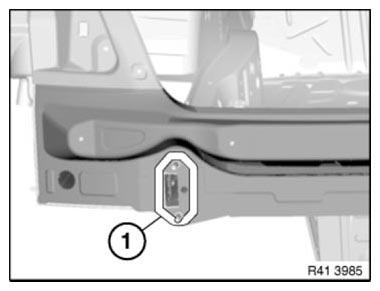

Fig 1: Identifying Adhesive Application Area

G08471467

Courtesy of BMW OF NORTH AMERICA, INC.

Slide in rear trim panel (1) from bottom upwards.

Rivet rear panel.

NOTE: When sliding in rear trim panel, make sure there is sufficient adhesive on bonding surfaces.

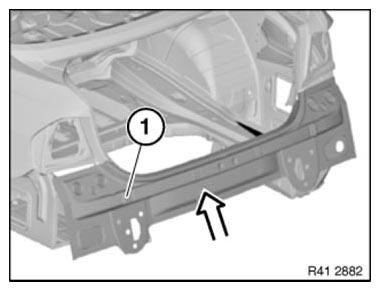

Fig 2: Sliding Rear Panel

G08471468

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1), rivet tail panel with 4 punch rivets N4.

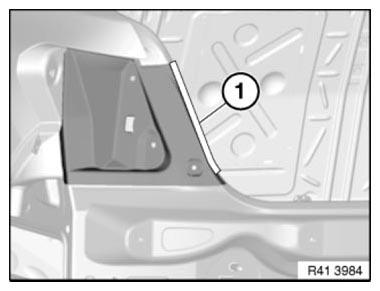

Fig 3: Identifying Rivet Tail Panel Area

G08471469

Courtesy of BMW OF NORTH AMERICA, INC.

Press rear trim panel in area (1) and remove emerging adhesive.

Before the adhesive has hardened, install the support for the bumper trim.

IMPORTANT: Prevent emerging adhesive from coming into contact with support.
Do not use any cleaning agents containing solvents.

Fig 4: Identifying Rear Trim Panel Adhesive Area

G08471470

Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of the adhesive install 10 EMC SCREWS in the areas (1).

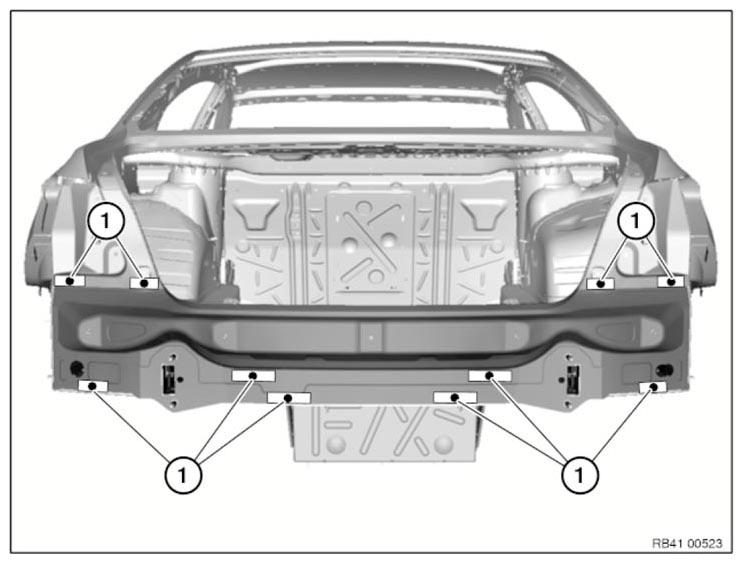

Fig 5: Identifying Tail Panel EMC Screw Areas

G08471471

Courtesy of BMW OF NORTH AMERICA, INC.
