41 62 043 Removing And Installing Or Replacing Left Hinge For Tailgate
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Read relevant service information under BODY
Necessary preliminary work:
- Remove TAILGATE
- Remove tension spring/spindle drive. See LEFT TENSION SPRING FOR REAR LID , LEFT SPINDLE DRIVE , and RIGHT SPINDLE DRIVE .
- Remove PANEL FOR STORAGE SHELF
- Remove luggage compartment wheel arch panel. See LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM and RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

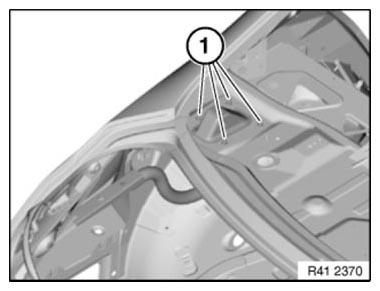

Open screw connections (1) on vehicle.
Remove hinge.
Installation note:
Tightening torque: see 2AZ in 41 62 REAR LID
ADJUST hinge together with tailgate.
