41 31 010 Replacing Outer Roof Skin (Version With Slide/Tilt Sunroof): Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Observe REPAIR STAGE 2 procedure!
Read relevant service information under BODY .
The following parts are required (refer to BMW Electronic Parts Catalogue):

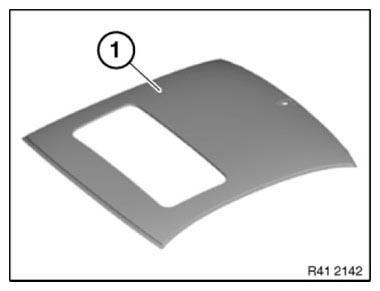

- Roof outer skin
Additional required parts (not pictured):
| Description | Part number | Quantity |
|---|---|---|
| Sound insulation | 07 14 6 949 300 |
1 |
| Blind rivets for holder | 51 41 7 068 752 |
4 |
| Blind rivets for earth strap | 07 14 7 216 857 |
8 |
Additionally required CONSUMABLES :
| Material | Quantity |
|---|---|
| Adhesive K2 | 3 |
| Adhesive K5a | 1 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
Tools also required:
- Roof pliers set, order number: 81 43 2 158 707
See BMW Aftersales Assistance Portal (ASAP)
Service/Technology - Workshop Equipment - Start BMW
Or at: www.bmwbroup-wep.com
NOTE:
Store adhesive at room temperature.
Adhere to adhesive processing temperature of 15 - 28 °C without fail.
Prior to installation, store roof outer skin and vehicle for at least 12 hours at room temperature (17 °C to 35 °C).
Adhere to adhesive processing temperature of 15 - 28 °C without fail.
Prior to installation, store roof outer skin and vehicle for at least 12 hours at room temperature (17 °C to 35 °C).
