Applying adhesive

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

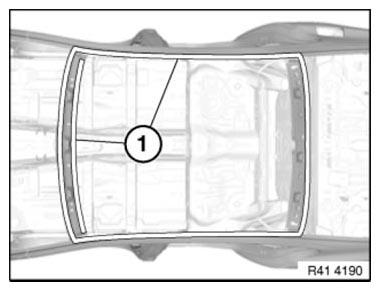

Apply K2 adhesive in areas (1).

Guide nozzle at an angle of max. 60° along adhesive flange.

Cross-section of adhesive bead approx. 4 - 5 x 10 mm.

Apply a short reference bead at an appropriate point for later checking.

Fig 1: Identifying Roof Outer Skin Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

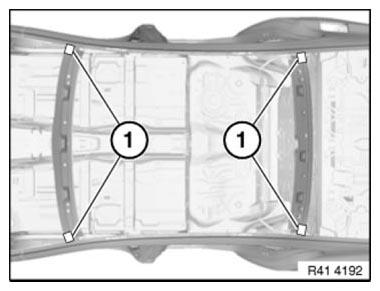

Apply a little more adhesive K2 to nodes (1) of A- and C-pillars.

NOTE: Excess material is later used for spreading to side frame.

Fig 2: Identifying Adhesive K2 Applying Area To Nodes

Courtesy of BMW OF NORTH AMERICA, INC.

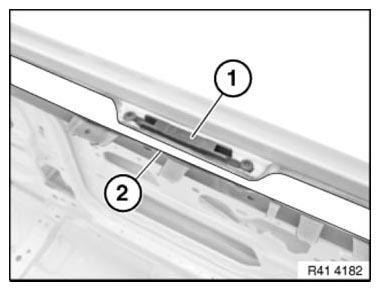

Apply a little less adhesive (1) in area of holders (1).

Fig 3: Identifying Adhesive Area Of Holders

Courtesy of BMW OF NORTH AMERICA, INC.
