41 12 651 Replacing Luggage Compartment Floor, Left Section (Tail Panel Or Side Wall Removed): Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Observe REPAIR STAGE 2 procedure!
Read relevant service information under BODY .
The following new body parts are required (see BMW Electronic Parts Catalogue):

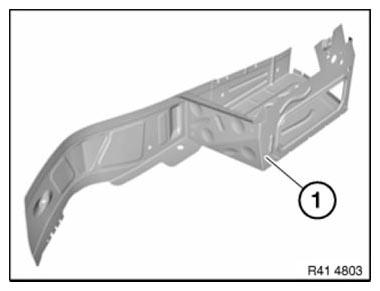

- (1) Luggage compartment floor, left section
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5a | 1 |
| Blind rivets N3 | 25 |
| EMC screws | 4 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
