41 12 535 Replace Luggage Compartment Floor And Both Side Members (Tail Panel Trim Removed): Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedure of REPAIR STAGE 3 .

Read relevant service information under BODY .

STRIP DOWN VEHICLE

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

The following new body parts are required (see BMW Electronic Parts Catalogue):

(1) Luggage compartment floor, rear
(2) Side member, left and right
(3) Extension, side member, left and right
(4) Luggage compartment floor, left and right
(5) Fixture, bumper, left and right

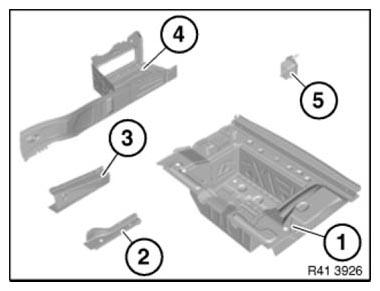

Fig 1: Identifying Luggage Compartment Floor, Side Member, Extension, Luggage Compartment Floor And Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Following CONSUMABLES are required:

Material	Quantity
Adhesive K5a	1
Adhesive K5b	1
Blind rivets N3	78
EMC screws	8
Cleaning agent R1	1
Sealant D1
