Removal of side wall holder (variant 2)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Release welded connection in area (1) and remove holder (2).

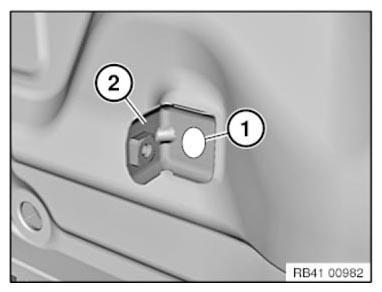

Fig 1: Identifying Welded Connection Area And Holder
G08471458Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Fit in new part.

In area of adhesive surface (1), drill a 4.2 mm dia. bore hole (2) for blind rivet N3.

Remove new part and deburr holes.

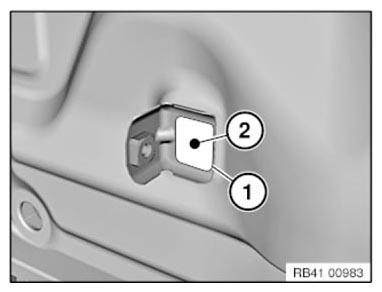

Fig 2: Identifying Adhesive Surface And Bore Hole
G08471459Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Do not grind bonding surfaces down or off.
