Removal of side wall holder (variant 1)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

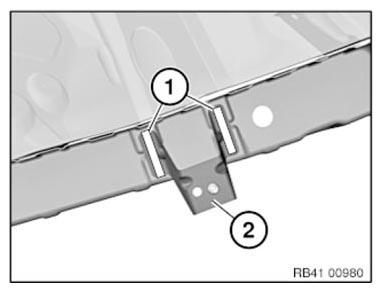

Release welded connections in areas (1) and remove holder (2).

Fig 1: Identifying Welded Connections In Areas And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Adjust new part in conjunction with side panel in front to fit.

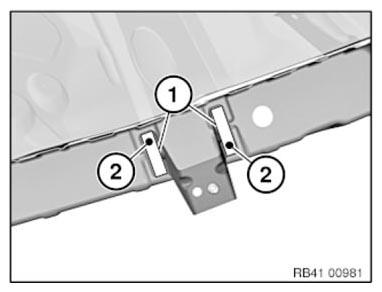

In area of bonding surfaces (1), set 2 4.2 mm dia. bore holes (2) for blind rivets N3.

Remove new part and deburr holes.

Fig 2: Identifying Front Left Or Right Side Wall Holder Bonding Surfaces And Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind bonding surfaces down or off.
