41 33 040 Replacing Front Left Or Right Side Wall Holder: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Side wall removed.
Transfer the systematic diagram onto the respective holder version.

General information:

Observe REPAIR STAGE 2 procedure!

Read relevant service information under BODY .

The following new body parts are required (refer to BMW Electronic Parts Catalogue):

(1) Holder, side wall, front (variant 1)
(2) Holder, side wall, front (variant 2)

Following CONSUMABLES are required:

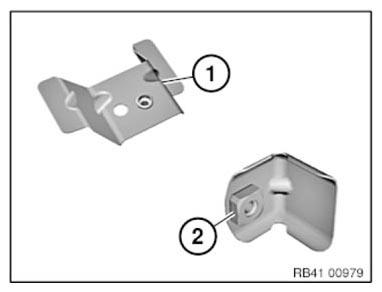

Fig 1: Identifying Front Side Wall Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Adhesive K5a	1
Blind rivets N3	2
Cleaning agent R1	1
