Removing actuator

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Remove resetter (1).

Release screws (2) and slowly raise actuator until connector on underside of actuator is accessible.

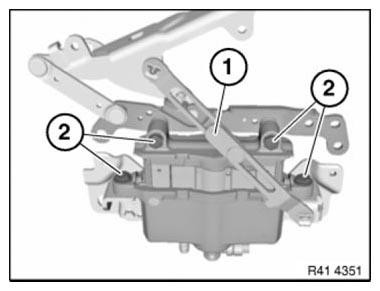

Fig 1: Identifying Actuator Resetter And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull lock (1) in direction of arrow.

Then press together connector fastener on both sides and detach connector (2).

Installation note:

PROCEDURE after actuator triggering.

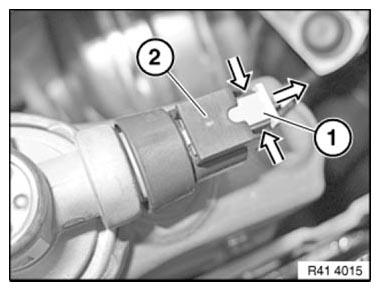

Fig 2: Pressing Together Connector Fastener On Both Sides

Courtesy of BMW OF NORTH AMERICA, INC.
