Removing actuator

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When the actuators have not activated, the front flap and gas pressure springs do not have to be removed.

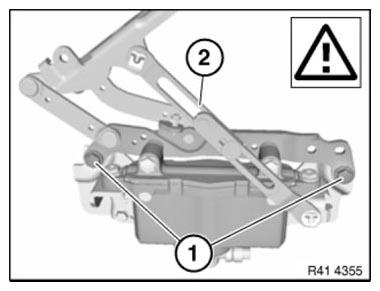

Remove protective caps and screw in and tighten retaining screws M8 (1).

Remove resetter (2).

NOTE: The retaining screws are required as aids to fitting the actuator.

After the actuator has been installed, retaining screws must be removed again!

Fig 1: Identifying Actuator Retaining Screws And Resetter

Courtesy of BMW OF NORTH AMERICA, INC.

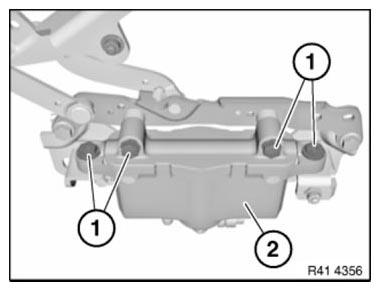

Release screws (1) and slowly raise actuator (2) until connector on underside of actuator is accessible.

Fig 2: Identifying Screws And Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

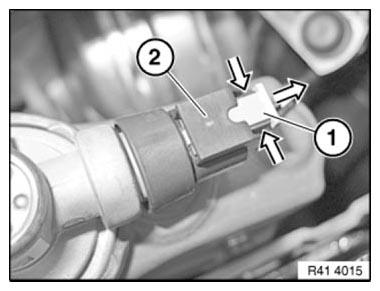

Pull lock (1) in direction of arrow.

Then press together connector fastener on both sides and detach connector (2).

Fig 3: Pressing Together Connector Fastener On Both Sides

Courtesy of BMW OF NORTH AMERICA, INC.
