51 23 400 Removing And Installing Or Replacing Left Or Right Actuator (Active Pedestrian Protection) (Vehicles From 09/2011)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Adhere to the following SAFETY INFORMATION
so as to avoid a danger of injury by the actuator.
The BATTERY NEGATIVE LEAD must be clamped off prior to work on the actuator or engine compartment lid!
Do not exert any force on the actuator.
Incorrect handling may result in triggering of the actuator and thereby cause serious injury.
The BATTERY NEGATIVE LEAD must be clamped off prior to work on the actuator or engine compartment lid!
Do not exert any force on the actuator.
Incorrect handling may result in triggering of the actuator and thereby cause serious injury.
Necessary preliminary tasks:
Disconnect BATTERY EARTH LEAD

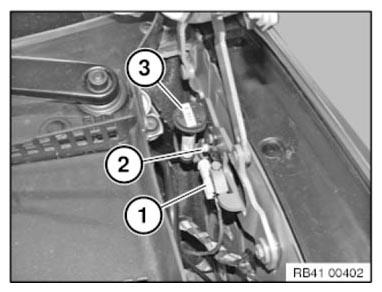

Unfasten plug connection (1) and disconnect.
Release bolt (2) and remove actuator (3).
Tightening torque: see 8AZ in 41 61 ENGINE COMPARTMENT LID
Comply with notes regarding handling active PEDESTRIAN PROTECTION .
