Height adjustment at strikers

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Adjust height by turning nut (1).

Height adjustment of engine compartment lid to side panel by means of STOP PAD .

NOTE: The engine compartment lid is correctly adjusted in the front section by a combination of pulling the strikers and pressing the stop pads.

Incorrect adjustment results in either wobbling of the engine compartment lid or sluggish unlocking.

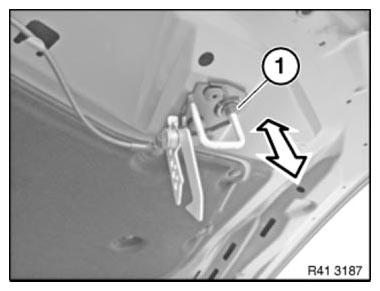

Fig 1: Adjusting Height Of Engine Compartment Lid
G08471533Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Check function of retaining hook.
