65 50 160 Removing and installing/replacing cover for rear cabin monitor display at front and rear

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

Necessary preliminary work:

Remove REAR CABIN MONITOR

IMPORTANT: Do not damage or scratch display.

Unclip rear cover (1) with special tool 00 9 327 and remove.

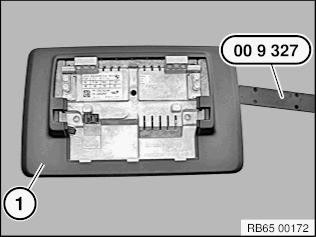

Fig 1: Identifying Rear Cover And Special Tool 00 9 327

G00530700

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) must not be damaged.

Fig 2: Identifying Latch Mechanisms

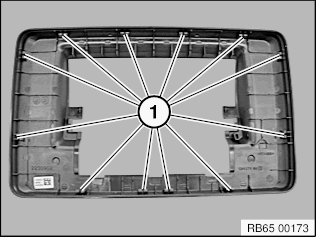

G00530701

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws at marked points.

Tightening torque: see 1AZ in 65 50 REAR-COMPARTMENT MONITOR .

Feed out connector (1).

Remove rear monitor (3) from front cover (2).

Installation note:

Ensure that connector (1) has correct cable routing.

Make sure cover (2) is correctly seated on rear monitor (3).

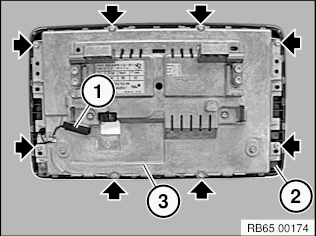

Fig 3: Identifying Rear Monitor, Front Cover, And Connector

G00530702

Courtesy of BMW OF NORTH AMERICA, INC.
