65 13 195 Removing and installing/replacing rear treble speaker (in rear shelf)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Installation:
- Remove REAR SPEAKER CARRIER

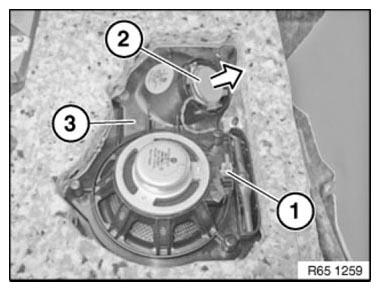

Disconnect plug connection (1).
Unclip tweeter (2) from speaker carrier (3) and remove in direction of arrow.
Installation:
Ensure correct cable routing.
