65 13 052 Removing and installing/replacing cover on speaker system (High End sound system in dashboard trim panel)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

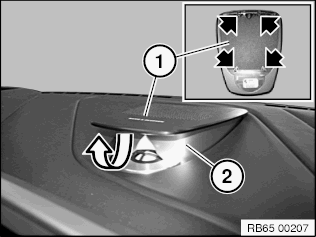

Picture for example purposes, F12 shown.
Move out speaker system (2) by switching on radio.
Cover (1) is clipped on speaker system at marked points.
Carefully unclip cover (1) upwards.
Installation note:
Speaker system (2) must be moved out to allow cover (1) to lock correctly.
