Version with connector clips

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

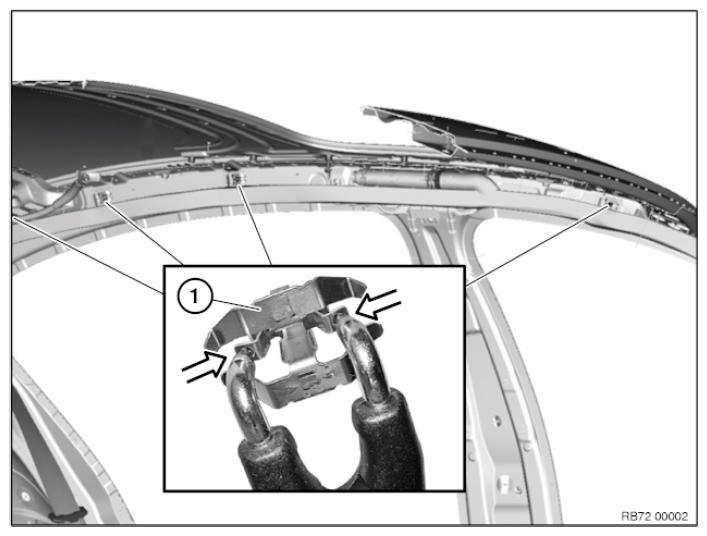

Fig 1: Pressing Connector Clips
G08506034Courtesy of BMW OF NORTH AMERICA, INC.

Press connector clips (1) together and remove.

Release screw (1) on A-pillar.

Tightening torque 72 12 02AZ .

Installation note:

End fitting is coded against incorrect assembly.

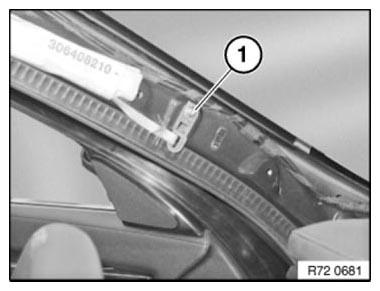

Fig 2: Identifying A-Pillar Screw
G08474359Courtesy of BMW OF NORTH AMERICA, INC.
