37 11 030 Removing and installing front left or right spring strut

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT WHEEL
Remove upper wishbone from swivel bearing. See TOP LEFT WISHBONE or TOP RIGHT WISHBONE .
Remove ANTI-ROLL BAR LINK FROM SPRING STRUT

IMPORTANT: Risk of damage!
Secure spring strut against falling out.

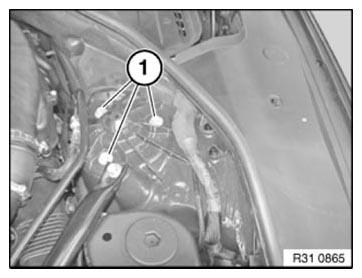

Release screws (1).

Fig 1: Identifying Spring Strut Screws

G08470941

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Turn support bearing in direction of travel up to stop in clockwise direction and tighten.

Clean contact surface in spring strut dome.

Tightening torque 31 31 1AZ .

Fig 2: Turning Support Bearing To Clockwise

G06889590

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Disconnect feed line (2) from mounting.

Fig 3: Identifying Plug Connection And Feed Line

G06889591

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove screw.

Release spring strut from wishbone (2).

Installation note:

Replace screw and nut.

Note direction of insertion of screw.

Adhere to the assembly sequence.

Tightening torque 31 12 7AZ .

Fig 4: Identifying Wishbone And Nut

G06889553

Courtesy of BMW OF NORTH AMERICA, INC.

Remove spring strut downwards out of wheel arch.

Fig 5: Identifying Spring Strut

G04794341

Courtesy of BMW OF NORTH AMERICA, INC.
