26 11 100 Removing and installing three-hole flange

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The slide-in nut must be replaced by a new one.

The sunk nut already has a screw locking.

After the propeller shaft has been screwed into the rear axle final drive (sunk nut), a hardening time of at least 2 hours is absolutely necessary.

The hardening time may be extended at lower temperatures!

Failure to comply with these instructions may cause serious damage!

Necessary preliminary tasks:

Remove PROPELLER SHAFT

Since the three-hole flange, the flexible disc and the propeller shaft are balanced as a single unit, the balance quality of the propeller shaft, flexible disc and three-hole flange may be compromised slightly when the three-hole flange is replaced.

IMPORTANT: Before removing propeller shaft:

The three-hole flange and the propeller shaft must be reassembled in the same position.

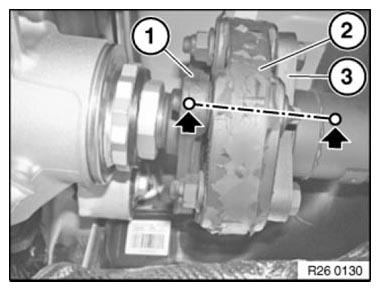

Mark three-hole flange (1), flexible disc (2) and propeller shaft (3) in one plane.

Installation note:

Replace ZNS bolts and self-locking nuts.

Fig 1: Identifying Propeller Shaft, Flexible Disc And Three-Hole Flange

Courtesy of BMW OF NORTH AMERICA, INC.

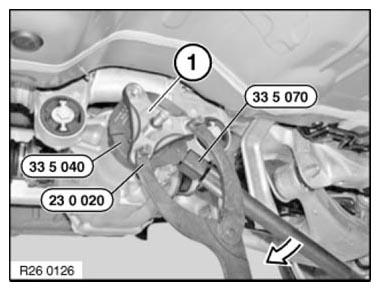

Release insert nut against direction of travel in clockwise direction with special tool 33 5 040 and 33 5 070 .

Grip with special tool 23 0 020.

Release three-hole flange (1) from bevel pinion.

Tightening torque: see 6AZ in 26 11 PROPELLER SHAFT, COMPLETE

Fig 2: Releasing Insert Nut Using Special Tool (33 5 040 And 33 5 070)

Courtesy of BMW OF NORTH AMERICA, INC.

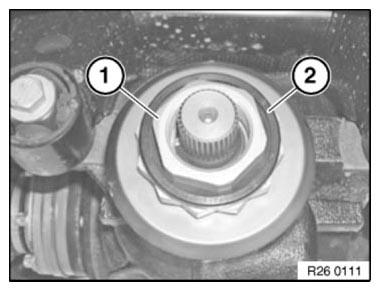

Remove retaining clip (1) and gasket (2).

Installation note:

Retaining clip and gasket must be replaced.

Fig 3: Identifying Retaining Clip And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

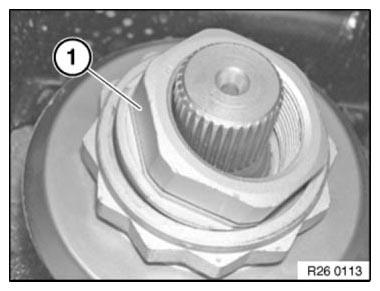

Remove insert nut (1).

Installation note:

Insert nut must be replaced.

Fig 4: Identifying Insert Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Before installing three-hole flange:

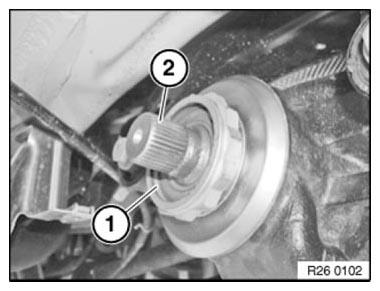

Clean insert collar (1) on flange nut and gearing on bevel pinion (2).

Fill insert collar (1) with grease.

Grease: refer to BMW SPECIFIED GREASE

Fig 5: Identifying Insert Collar And Bevel Pinion

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Thread of flange hub must not be contaminated with grease.

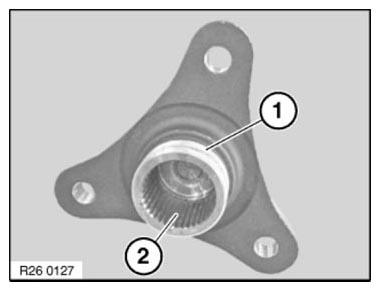

Clean thread (1) of flange hub to remove adhesive residues.

Clean hub teeth (2), then coat with grease.

Grease: refer to BMW SPECIFIED GREASE

Fig 6: Identifying Hub Teeth And Thread

Courtesy of BMW OF NORTH AMERICA, INC.

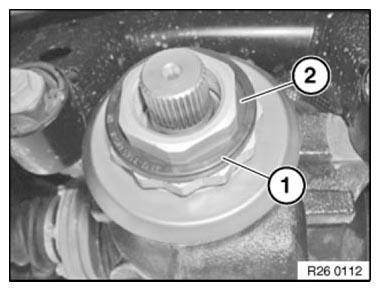

Place flange nut (1) with gasket in insert collar of flange nut.

Install retaining clip (2).

Fig 7: Identifying Retaining Clip And Flange Nut

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The bi-hexagonal flange nut must not be used for bracing.
Failure to comply with this instruction may result in serious damage to the rear axle final drive.

IMPORTANT: Insert nut must be screwed into place within 5 minutes .
Tightening torque: see 6AZ in 26 11 PROPELLER SHAFT, COMPLETE

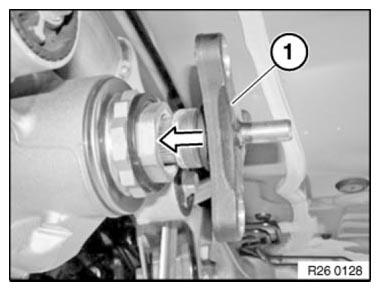

Slide drive flange (1) to the limit position onto insert nut and secure.

Fig 8: Sliding Drive Flange Onto Insert Nut

Courtesy of BMW OF NORTH AMERICA, INC.
