26 11 051 Replacing flexible disc for front propeller shaft

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PROPELLER SHAFT at transmission and center bearing.
Remove complete propeller shaft (F10, F12, F13 - S63).

NOTE: To protect universal joints, tie back propeller shaft in area of center mount.

Release screws and remove flexible disc (1) from propeller shaft.

Tightening torque and angle of rotation: see 2AZ in 26 11 PROPELLER SHAFT, COMPLETE

IMPORTANT: Replace ZNS bolts and self-locking nuts.

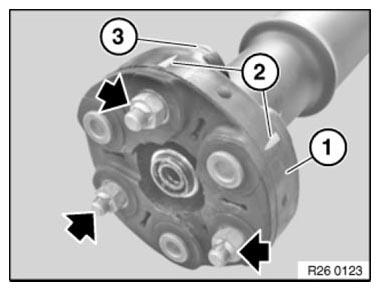

Fig 1: Locating Flexible Disc ZNS Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: On the F10, F12, F13 - S63 a silicone flexible disc is installed instead of the conventional rubber flexible disc.

Installation note:

During installation arrows (2) on circumference of flexible disc must point to flange arms (3).

NOTE: Instead of conventional rubber flexible disks, F series also use
aluminium flexible discs, which are also called EGG (constant velocity joints).

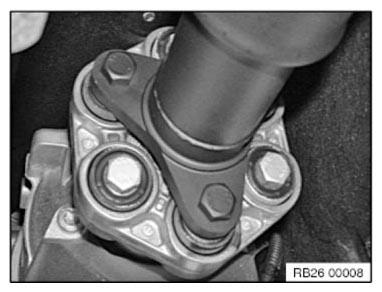

Fig 2: Identifying EGG (Constant Velocity Joints)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check centering mount.

Replace damaged CENTERING MOUNT .

Grease centering mount.

Grease: refer to BMW SPECIFIED GREASE

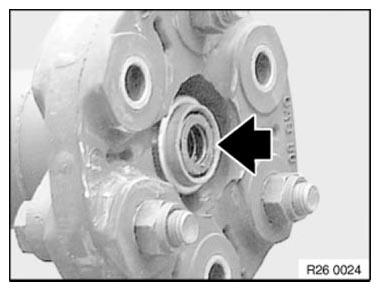

Fig 3: Locating Centering Mount

Courtesy of BMW OF NORTH AMERICA, INC.
