26 12 011 Replacing grooved ball bearing in propeller shaft center bearing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Replace propeller shaft center bearing

Press grooved ball bearing using special tool 23 1 160 out of center mount (1).

NOTE: Illustration shows E46.

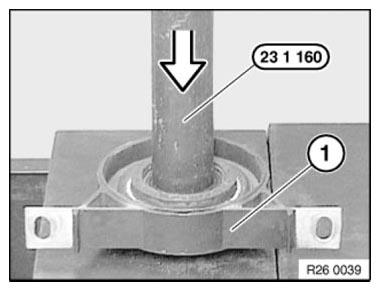

Fig 1: Pressing Grooved Ball Bearing Using Special Tool (23 1 160)

Courtesy of BMW OF NORTH AMERICA, INC.

Coat rubber-coated bearing seat of center mount (2) with Circolight.

Circolight, refer to BMW Parts Service.

Use special tools 33 3 202 /33 3 203 to press grooved ball bearing (1) into center mount (2).

NOTE: Illustration shows E46.

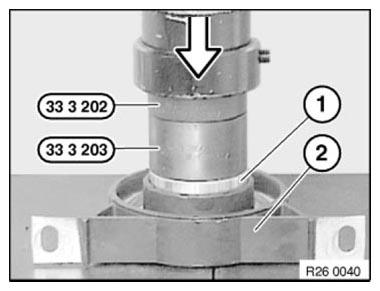

Fig 2: Pressing Grooved Ball Bearing Into Centre Mount Using Special Tools (33 3 202 And 33 3 203)

Courtesy of BMW OF NORTH AMERICA, INC.
