26 11 020 Replacing center mount gaiter

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PROPELLER SHAFT .

NOTE: The propeller shaft is balanced.

The front and rear propeller shafts must be reassembled in the same position.

Detach gaiter (1) from groove (2).

Mark front propeller shaft (3) and rear propeller shaft (4) in one plane.

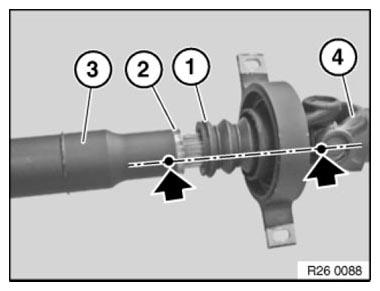

Fig 1: Identifying Gaiter, Groove, Front And Rear Propeller Shaft

G08470236

Courtesy of BMW OF NORTH AMERICA, INC.

Pull apart propeller shaft.

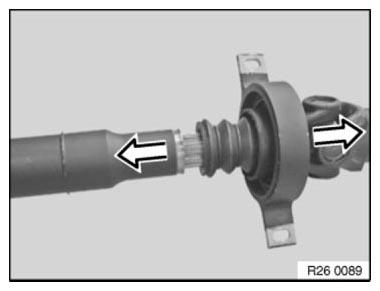

Fig 2: Pulling Propeller Shaft

G08470237

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, insert new clamping ring (1) into front propeller shaft (2).

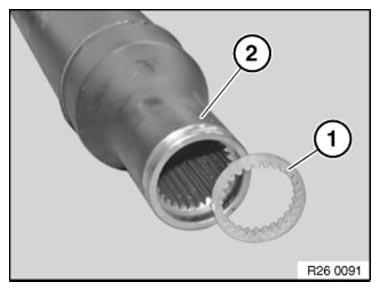

Fig 3: Identifying Clamping Ring And Propeller Shaft

G08470238

Courtesy of BMW OF NORTH AMERICA, INC.

Release gaiter (1) with screwdriver from groove (2) and pull off over longitudinal splines.

Installation note:

Apply an even coating of grease to longitudinal splines on shaft.

Grease: refer to BMW SPECIFIED GREASE

Observe markings and force front propeller shaft onto longitudinal splines (markings must be flush).

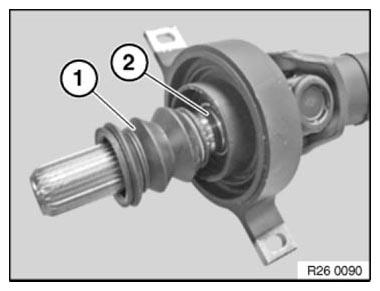

Fig 4: Identifying Gaiter And Groove

G08470239

Courtesy of BMW OF NORTH AMERICA, INC.

Push gaiter (1) during installation into groove (2) and make sure it is firmly fitted.
