52 25... Removing and installing armrest storage tray

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COVER AND BUTTON
Remove BASE PLATE

Release screws (1).

To remove storage tray, raise cover (2) slightly.

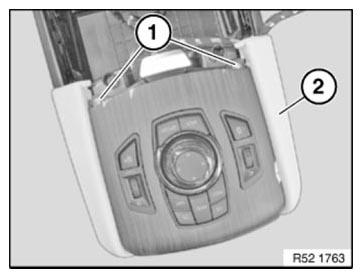

Fig 1: Identifying Armrest Storage Tray Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Press the marked area to unlock the storage tray.

Remove storage tray upward at the same time.

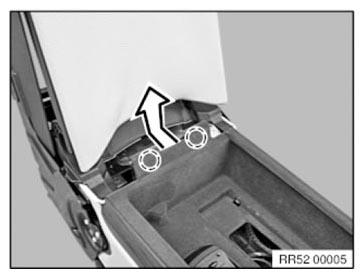

Fig 2: Removing Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.
