52 25 049 Replacing lumbar support on left or right rear seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MASSAGE MAT

Detach air hoses from solenoid valve.

NOTE: Heat air hoses gently if they are too firmly seated on solenoid valve.

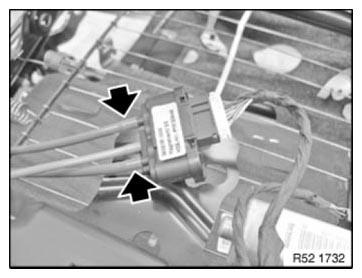

Fig 1: Locating Solenoid Valve Air Hoses

G08473159

Courtesy of BMW OF NORTH AMERICA, INC.

Remove clamps (1) at top left and right.

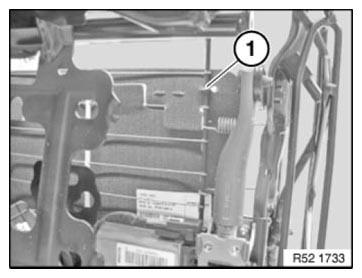

Fig 2: Identifying Left And Right Seat Clamps

G08473160

Courtesy of BMW OF NORTH AMERICA, INC.

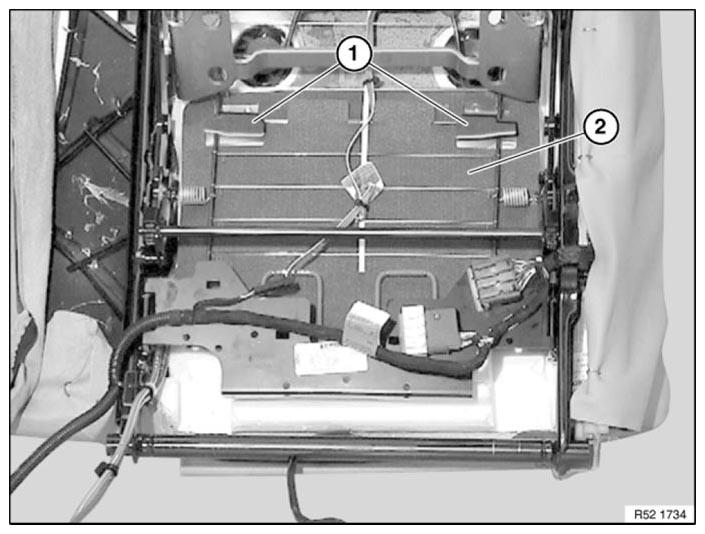

Fig 3: Identifying Lumbar Support And Spring Wire

G08473161

Courtesy of BMW OF NORTH AMERICA, INC.

Detach lumbar support (1) from spring wire (2).

Installation note:

Engage lumbar support on fifth spring wire from below.

Air hoses must be laid without kinks.

Check lumbar support for damage.

Run a function check.
