52 25 038 Removing and installing/replacing seat frame on left or right rear seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LEFT OR RIGHT REAR SEAT

Unfasten plug connection (1) and disconnect.

Lever out clip.

Feed out wiring harness.

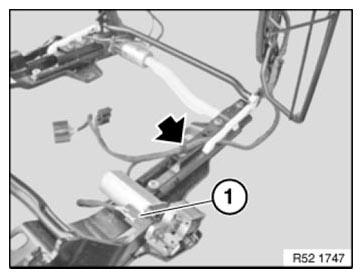

Fig 1: Locating Wiring Harness Clips

G08473135

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

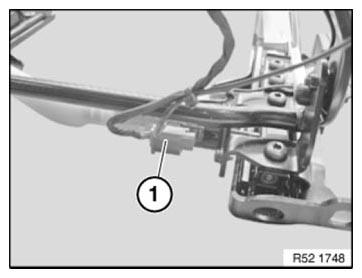

Fig 2: Identifying Plug Connection

G08473136

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left and right.

Remove backrest.

Installation note:

Replace microencapsulated screws (1).

Tightening torque: see 8AZ in 52 25 REAR SEAT, ELECTRIC

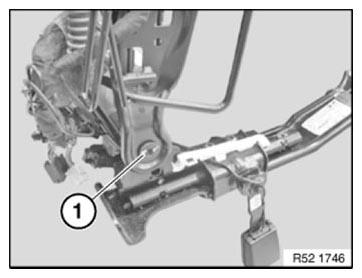

Fig 3: Identifying Micro-Encapsulated Screws

G08473137

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The new seat frame part contains all the drives.
