52 25 015 Removing and installing/replacing backrest for left or right rear seat: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear HEAD RESTRAINT
- Remove left or right REAR SEAT
- Move backrest completely forwards
Installation:
- Microencapsulated screws and nuts (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws/nuts must not be retightened
- Clean thread of nut beforehand in event of repeated use
NOTE:
For purposes of clarity the following operations are shown in the released state.

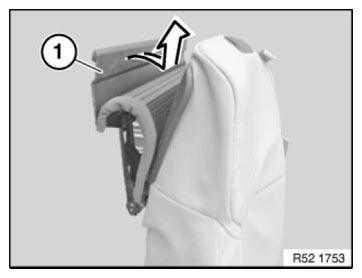

Detach cover (1) from Velcro-type fastener.

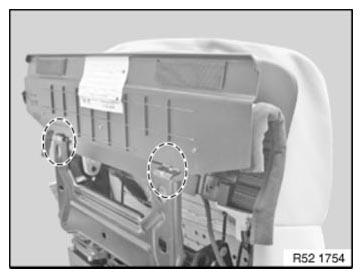

Pull cover (1) upwards out of guide from four-bar lever.
Installation:
Make sure cover guide is correctly seated on four-bar lever.

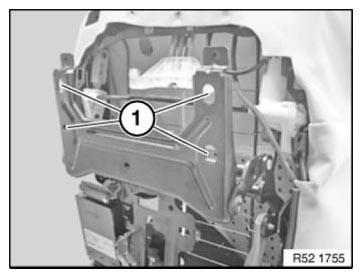

Unscrew nuts (1).
Installation:
Replace nuts (1).
Tightening torque: see 4AZ in 52 25 REAR SEAT, ELECTRIC

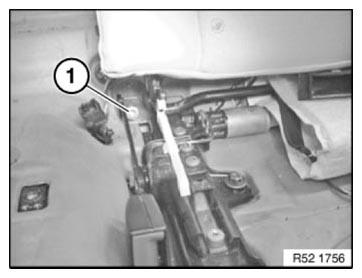

Release screw (1).
Installation:
Replace screw (1).
Tightening torque: see 5AZ in 52 25 REAR SEAT, ELECTRIC

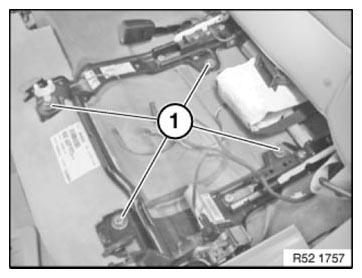

Unscrew nuts (1).
Installation:
Replace nuts (1).
Tightening torque: see 5AZ in 52 25 REAR SEAT, ELECTRIC
