52 16... Replacing upholstery for front seat thigh support

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Run thigh support forward as far as possible.

Release screws (1).

Installation note:

Insert screws (1) with Loctite.

Tightening torque: see 11AZ in 52 10 FRONT SEATS

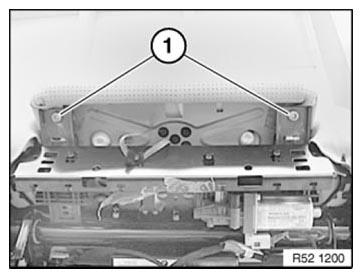

Fig 1: Identifying Front Seat Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook seat cover (1) from marked area.

Remove carrier (2) for thigh support.

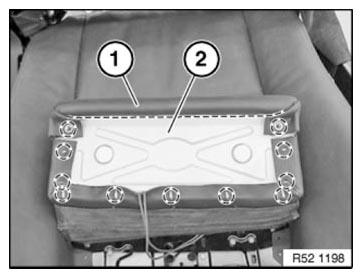

Fig 2: Identifying Seat Cover And Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

For seat heating optional extra only:

Carefully detach felt (1) from thigh support.

Unfasten plug connection (2) and disconnect.

Installation note:

Ensure correct cable routing.

Remove upholstery from cover.

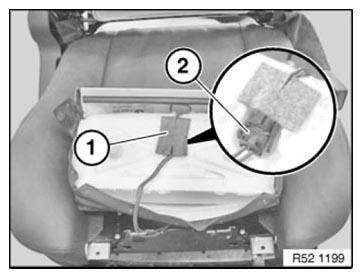

Fig 3: Identifying Support Felt And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
