Replace seat cover

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Pull trim wires (1) out of seat cover (2).

Installation note:

Slide trim wires (1) into new seat cover (2).

If necessary, cut mounting for trim threads.

(3) Seat heater cable

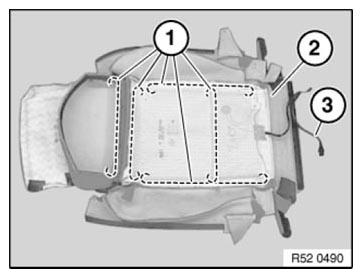

Fig 1: Identifying Trim Wires, Seat Cover And Seat Heater Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

52 0 050 Bend new retainers closed with pliers.

Upholstery
Clamp
Trim wire in upholstery
Trim wire in cover
Seat cover

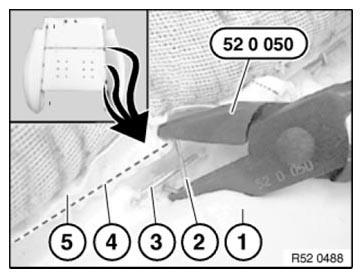

Fig 2: Bending Retainers Using Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.
