52 16 022 Removing and installing/replacing adjusting unit for thigh support on front passenger seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

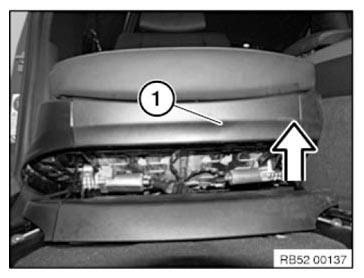

Move front seat into top position.

Unclip cover (1) with special tool 00 9 325 starting at the inside (arrow).

Fig 1: Moving Front Seat Into Top Position
G08472621Courtesy of BMW OF NORTH AMERICA, INC.

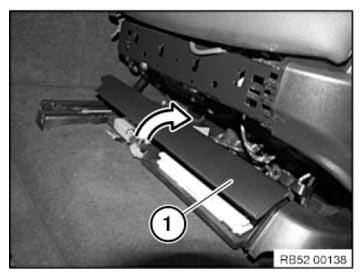

Fold up and unclip cover (1).

Fig 2: Disconnecting Front Seat Cover
G08472622Courtesy of BMW OF NORTH AMERICA, INC.

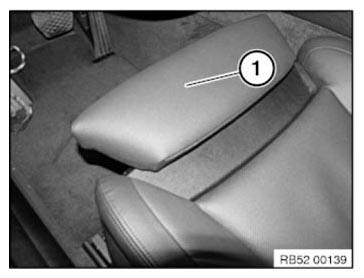

Move thigh support (1) as far forward as possible.

Fig 3: Identifying Thigh Support
G08472623Courtesy of BMW OF NORTH AMERICA, INC.

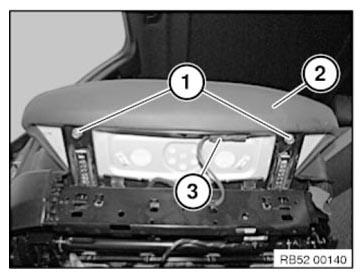

Unfasten plug connection (3) and disconnect.

Release screws (1).

Remove thigh support (2) towards top.

Installation note:

Insert screws (1) with Loctite.

Tightening torque: see 11AZ in 52 10 FRONT SEATS

Fig 4: Identifying Plug Connection, Thigh Support And Screws
G08472624Courtesy of BMW OF NORTH AMERICA, INC.

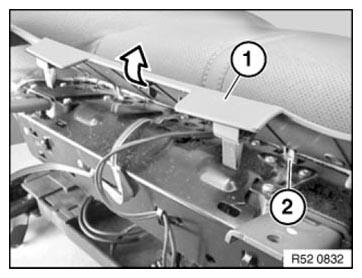

Unclip and remove cover (1) toward the top with special tool 00 9 325 .

Installation note:

Secure guide pins (2) in seat frame and clip cover (1) into place.

Fig 5: Removing Cover
G08472625Courtesy of BMW OF NORTH AMERICA, INC.

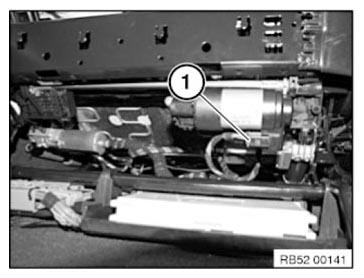

Disconnect plug connection (1).

Fig 6: Identifying Plug Connection
G08472626Courtesy of BMW OF NORTH AMERICA, INC.

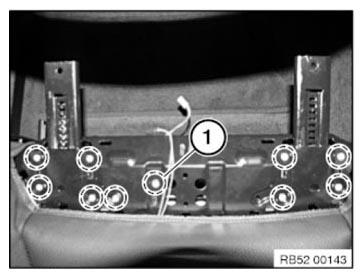

Release screws (1).

Tightening torque: see 9AZ in 52 10 FRONT SEATS

Fig 7: Identifying Thigh Support Screws
G08472627Courtesy of BMW OF NORTH AMERICA, INC.

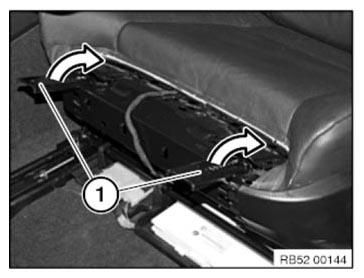

Raise adjusting unit (1) complete with electric motor in direction of arrow and feed out downward.

Fig 8: Removing Adjusting Unit
G08472628Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

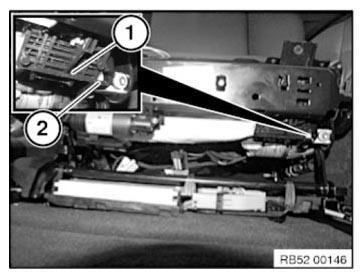

Adjusting unit (1) must lie flush on facing (2).

Fig 9: Identifying Adjusting Unit And Flush Facing
G08472629Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

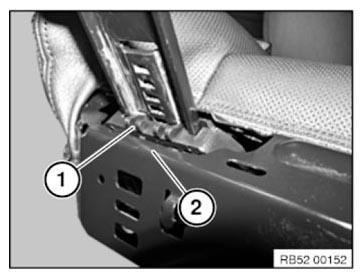

Make sure latch mechanism (1) of adjusting frame is correctly on frame (2) (as illustrated).

Fig 10: Identifying Latch Mechanism And Frame
G08472630Courtesy of BMW OF NORTH AMERICA, INC.
