52 16 021 Removing and installing/replacing adjusting unit for thigh support on driver's seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

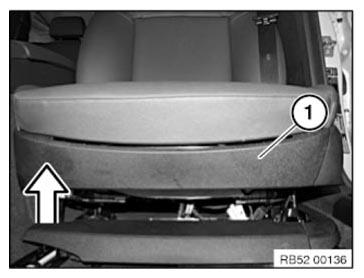

Move front seat into top position.

Unclip cover (1) with special tool 00 9 325 starting at the inside (arrow).

Fig 1: Moving Front Seat To Top Position
G08472611Courtesy of BMW OF NORTH AMERICA, INC.

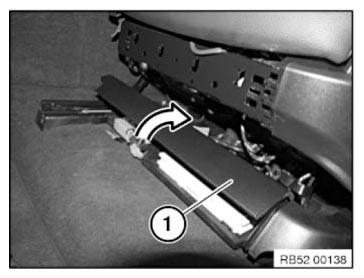

Fold up and unclip cover (1).

Fig 2: Disconnecting Front Seat Cover
G08472612Courtesy of BMW OF NORTH AMERICA, INC.

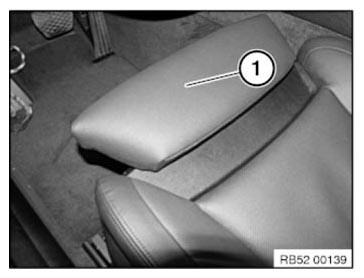

Move thigh support (1) as far forward as possible.

Fig 3: Identifying Thigh Support
G08472613Courtesy of BMW OF NORTH AMERICA, INC.

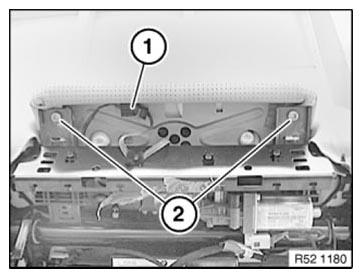

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Remove thigh support upward.

Installation note:

Insert screws (2) with Loctite.

Tightening torque: see 11AZ in 52 10 FRONT SEATS

Fig 4: Identifying Plug Connection And Screws
G08472614Courtesy of BMW OF NORTH AMERICA, INC.

Unclip and remove cover (1) toward the top with special tool 00 9 325 .

Installation note:

Secure guide pins (2) in seat frame and clip cover (1) into place.

Fig 5: Disconnecting Thigh Support Cover

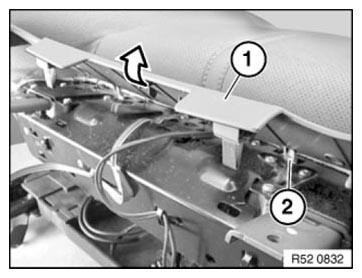

G08472615Courtesy of BMW OF NORTH AMERICA, INC.

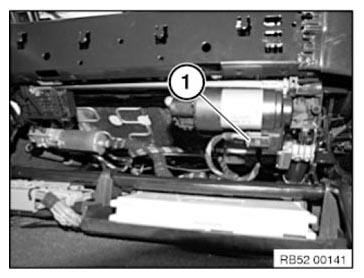

Disconnect plug connection (1).

Fig 6: Identifying Plug Connection
G08472616Courtesy of BMW OF NORTH AMERICA, INC.

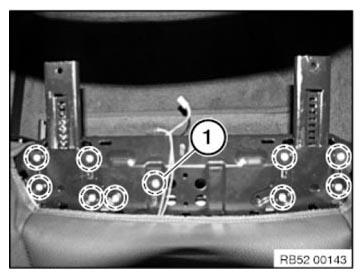

Release screws (1).

Tightening torque: see 9AZ in 52 10 FRONT SEATS

Fig 7: Identifying Thigh Support Screws
G08472617Courtesy of BMW OF NORTH AMERICA, INC.

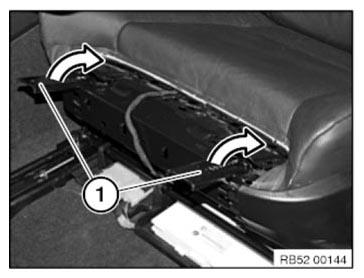

Raise adjusting unit (1) complete with electric motor in direction of arrow and feed out downward.

Fig 8: Removing Adjusting Unit
G08472618Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Adjusting unit (1) must lie flush on facing (2).

Fig 9: Identifying Adjusting Unit And Flush Facing

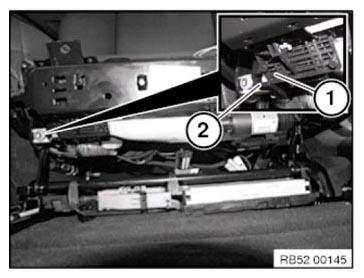

G08472619Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

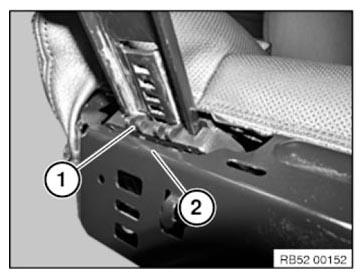

Make sure latch mechanism (1) of adjusting frame is correctly on frame (2) (as illustrated).

Fig 10: Identifying Latch Mechanism And Frame
