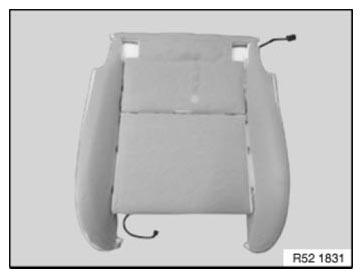

52 14 418 Replacing padding for front passenger seat (from 09/09 onward)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Operation is described in:
- Replacing SEAT COVER ON LEFT OR RIGHT FRONT SEAT .
WARNING:
US/CDN front passenger seat (with CIS mat) only
:
If CIS mat or padding is defective, both parts must be replaced together.
Seat heating is integrated in the CIS mat and is stuck to the padding over the full surface.
If CIS mat or padding is defective, both parts must be replaced together.
Seat heating is integrated in the CIS mat and is stuck to the padding over the full surface.
IMPORTANT:
The CIS mat must be enabled after each installation operation.
Enabling seat occupancy detector (CIS mat):
- Connect BMW Programming System
- ENCODE airbag control unit
- Delete fault memory if necessary
