52 14 417 Replacing upholstery for driver's seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

The operation for removing the upholstery is described in:

Replacing SEAT COVER FOR DRIVER'S SEAT

Seat with air conditioning:

Unfasten plug connection.

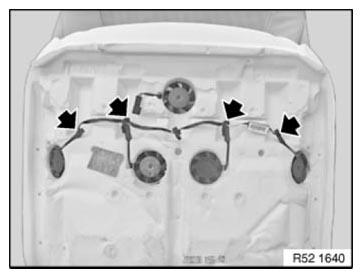

Fig 1: Locating Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Remove dividing net (1).

Remove fans (2) from upholstery.

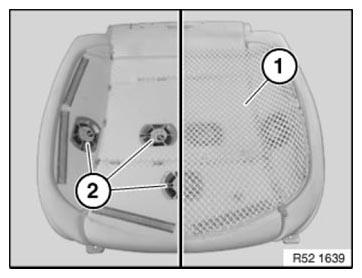

Fig 2: Identifying Dividing Net And Fans

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure fans have correct cable routing (1).

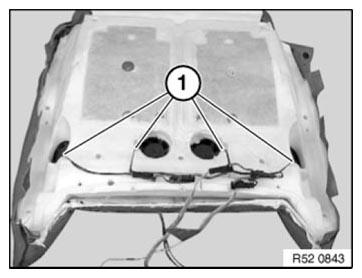

Fig 3: Identifying Fans Cable Routing

Courtesy of BMW OF NORTH AMERICA, INC.
