Replace seat cover

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Pull trim wires out of seat cover.

Installation note:

Slide trim threads into new seat cover. If necessary, cut mounting for trim threads.

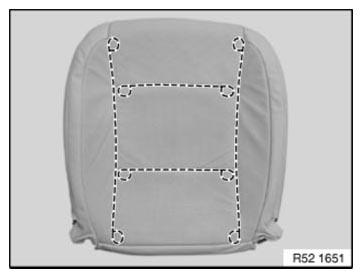

Fig 1: Identifying Seat Cover Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

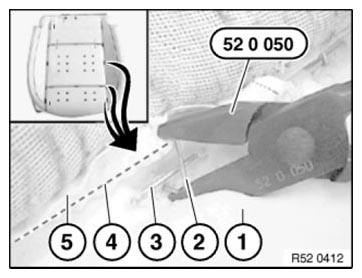

Bend new clamp (2) 52 0 050 closed with pliers.

Upholstery
Clamps
Trim wire in seat cover
Trim wire in upholstery
Seat cover

Fig 2: Bending Retainers Using Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.
