52 14 209 Removing and installing carrier plate for rear monitor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR MONITOR

Release tacker in marked area from carrier plate (1).

Remove clamps (2) at top left and right.

Fig 1: Identifying Carrier Plate And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Remove carrier plate (2).

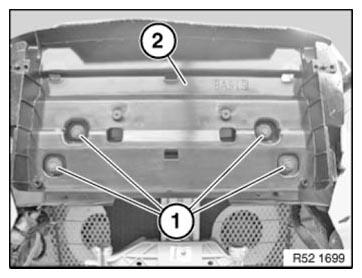

Fig 2: Identifying Carrier Plate And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mount head restraint to pretension backrest cover.

The seam of the backrest cover must not be wavy and must be flush with the backrest frame top edge.

Align backrest cover centrally.

Tack backrest cover with pneumatic tacker (sourcing reference: see BMW workshop equipment) front inside outwards to carrier plate (1).

/ Tacker on carrier plate at top.

4 Tacker on left and right in side area.

52 0 050 Bend new clamps closed with pliers.

Backrest cover must not show any folds.
