52 14 041 Removing and installing inner cover on left or right front seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

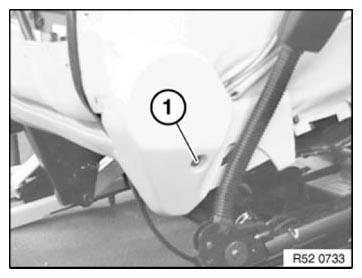

Release screw (1).

Fig 1: Identifying Front Seat Inner Cover Screw
G08472410Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

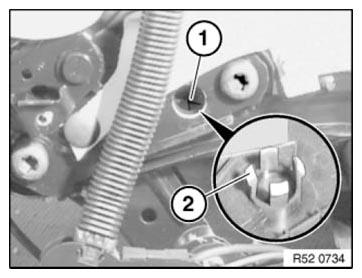

Cover is secured by guide (2) in bore hole (1).

Fig 2: Identifying Guide And Bore Hole
G08472411Courtesy of BMW OF NORTH AMERICA, INC.
