52 14 018 Removing and installing/replacing seat frame for front passenger seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT PASSENGER SEAT
Remove seat cover for front passenger seat. See SEAT COVER (NORMAL/ELECTRICAL, UP TO 09/09) , SEAT COVER (SPORTS, 09/09 ON) , or SEAT COVER (COMFORT, FROM 09/09) .
Remove backrest frame See 52 17 032 REMOVING AND INSTALLING/REPLACING BACKREST FRAME FOR DRIVER'S SEAT or REMOVING AND INSTALLING/REPLACING BACKREST FRAME FOR LEFT OR RIGHT DRIVER'S SEAT on front seat

Release all clips.

Installation note:

If necessary, replace faulty clips.

Feed wiring harness (1) out of seat frame.

Fig 1: Locating Seat Frame Wiring Harness Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Open rivets (1) on left and right.

Remove securing strips (2) on left and right.

Release screws (3).

Tightening torque: see 6AZ in 52 10 FRONT SEATS

Remove seat frame from seat rail.

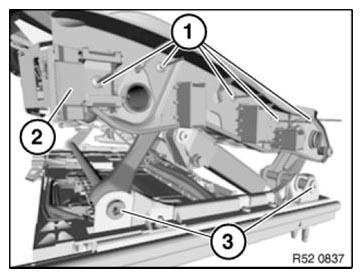

Fig 2: Identifying Left And Right Securing Strips, Rivets And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The new seat frame part contains all the drives.
