67 31 570 Removing and installing/replacing drive unit for head restraint height adjustment on left or right front seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CRASH-ACTIVE HEADREST

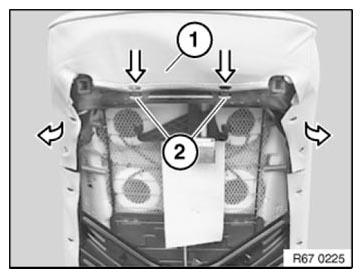

Pull backrest cover (1) in direction of arrow from sheet metal tabs (2).

Detach backrest cover (1) on both sides from backrest frame.

Lift cover with padding (1) in upper area over backrest frame.

Fig 1: Pulling Backrest Cover From Sheet Metal Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

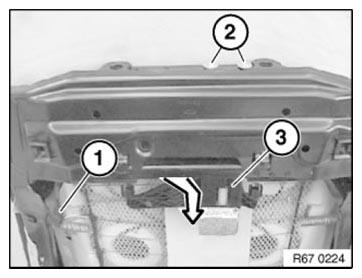

Disconnect plug connection (1).

Unfasten screws (2).

Tightening torque: see 3AZ in 67 31 DRIVE, SEAT ADJUSTMENT

Feed out drive unit for head restraint height adjustment (3) in direction of arrow and remove.

Fig 2: Removing Head Restraint Height Adjustment Drive

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
