Installing forward/back seat adjustment motor

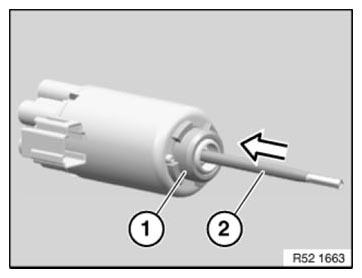

Insert short flex shaft (2).

Attach rubber grommet (1).

Fig 1: Inserting Short Flex Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

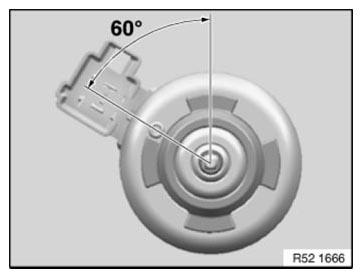

Installation note:

Attach rubber grommet at 60° angle to connector housing.

Fig 2: Identifying Rubber Grommet Installation Angle

Courtesy of BMW OF NORTH AMERICA, INC.

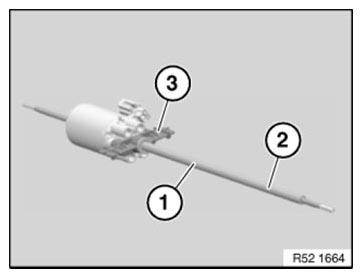

Insert long flex shaft (1) with sleeve tube (2) and rubber grommet in plastic part (3).

Fig 3: Identifying Long Flex Shaft, Sleeve Tube And Plastic Part

Courtesy of BMW OF NORTH AMERICA, INC.

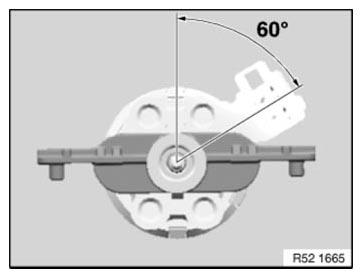

Installation note:

Attach Unified Parts Group to motor at 60° angle to connector housing so that it cannot twist.

Fig 4: Identifying Motor Installation Angle

Courtesy of BMW OF NORTH AMERICA, INC.

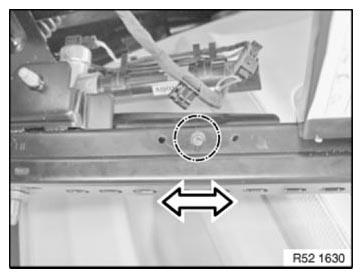

Slide seat rail with opening forwards or back until bushing for flex shaft mounting of worm gear is flush.

Insert flex shaft.

Fig 5: Sliding Seat Rail

Courtesy of BMW OF NORTH AMERICA, INC.

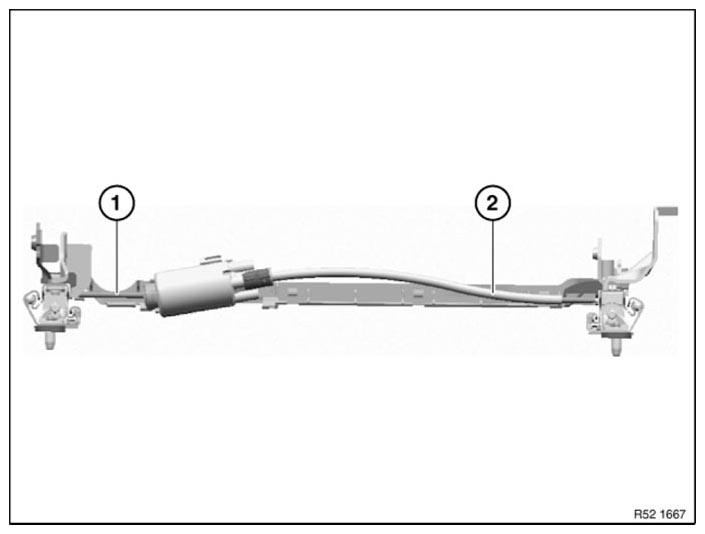

Fig 6: Identifying Short And Long Flex Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Slide short flex shaft (1) into longitudinal seat adjustment gearing square.

Bend long flex shaft (2) upwards and slide into longitudinal seat adjustment gearing.

Clip motor and flex shafts into carrier plate.

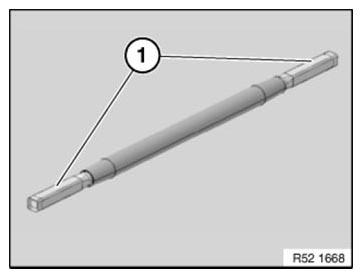

Installation note:

PTFE hoses are shrink-fitted onto end pieces.

Check that hoses are free from damage.

Fig 7: Identifying PTFE Hoses End Pieces

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

• Make sure flex shaft is correctly fitted on motor
• Carpet must not get between seat rails and floor panel in area of attachment points (squeaking noises)
• Powerlok screws must be replaced and must not  be reused
• Powerlok screws are mechanical screw locks with trilobular threads
• Insert all screws loose to avoid twisting
• Tighten down all screws to specified torque

Tightening torque: see 1AZ in 52 10 FRONT SEATS
