Overview of lumbar support with valve housing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

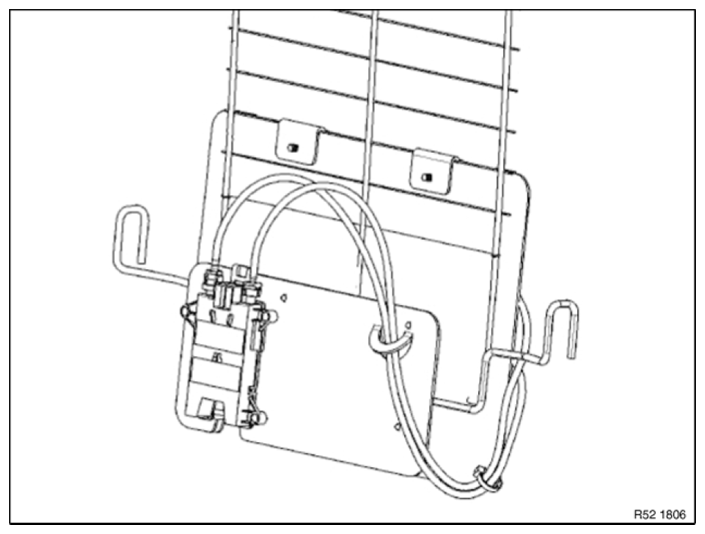

Fig 1: Overview Of Lumbar Support With Valve Housing
G08472923Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check lumbar cushion for damage.

Make sure lumbar support is correctly fitted on fourth spring wire from below.

Air hoses must not be kinked.

Make sure valve housing is correctly seated.

NOTE: Carry out FUNCTION TEST .
