52 17 055 Removing and installing/replacing both adjusting units for backrest width adjustment on driver's or passenger seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SIDE AIRBAG (front seat)
Remove backrest cover. See BACKREST COVER (NORMAL/ELECTRICAL) , BACKREST COVER (COMFORT) , or BACKREST COVER (SPORT) .

Release rivets (1) on left and right and remove trim (2).

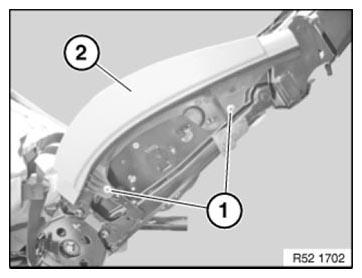

Fig 1: Identifying Trim And Rivets

G08472879

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable tie (1).

Installation:

Lay cables (3) without kinks.

Disconnect plug connection (2) on drive.

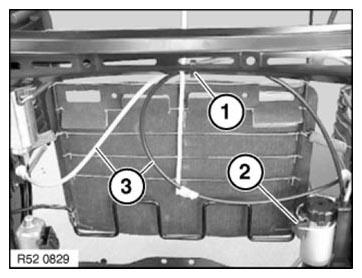

Fig 2: Identifying Plug Connection, Cable Tie And Cables

G08472880

Courtesy of BMW OF NORTH AMERICA, INC.

Release rivets (1) on left and right and remove adjusting elements (3).

Release rivets (2) for drive.

Remove complete adjusting unit.

NOTE: Adjusting element, cables and drive form a single unit and can only be replaced completely.

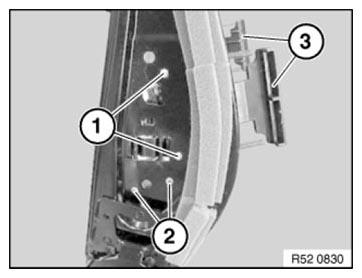

Fig 3: Identifying Adjusting Elements And Rivets

G08472881

Courtesy of BMW OF NORTH AMERICA, INC.
