52 17 027 Removing and installing/replacing pressure distributor for active passenger seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SEAT COVER WITH PADDING FOR PASSENGER SEAT

Unscrew left and right nuts (1).

Remove carrier plate towards front from seat mechanism.

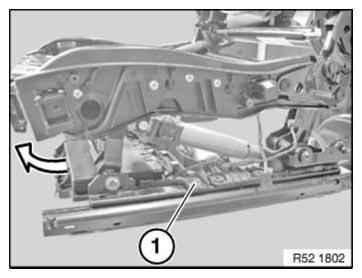

Fig 1: Removing Front Carrier Plate From Seat Mechanism

G08472931

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Pressure distributor and pneumatic pockets form a single unit and can only be replaced as a single component.

Unlock plug connection (1) on drive and disconnect.

Unlock plug connection (2) on control unit and disconnect.

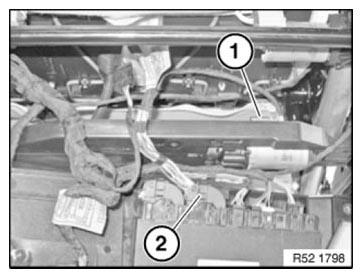

Fig 2: Identifying Drive Plug Connection And Control Unit Plug Connection

G08472932

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip pressure distributor (1) in marked area.

Installation:

Replace faulty clips.

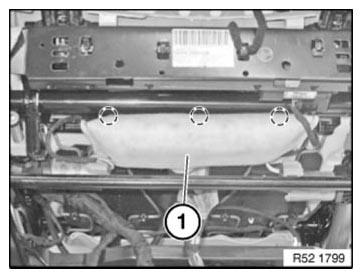

Fig 3: Identifying Pressure Distributor

G08472933

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip pneumatic pockets (1) with supports on left and right from flex mat.

Feed pneumatic pockets (1) through flex mat towards bottom.

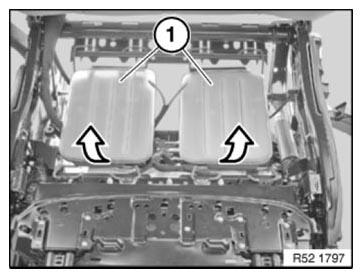

Fig 4: Removing Pneumatic Pockets

G08472934

Courtesy of BMW OF NORTH AMERICA, INC.

Open quick connector (1).

Feed out hose through fleece mat and backrest frame.

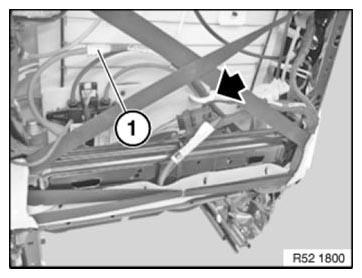

Fig 5: Identifying Quick Connector

G08472935

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
