16 13 015 Removing and installing/replacing tank leak diagnosis module (vehicles with US DMTL version)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CARBON CANISTER

Unlock and disconnect snap fastener (1).

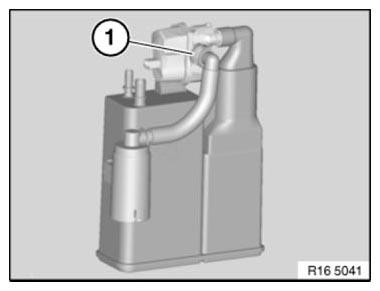

Fig 1: Identifying Snap Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove diagnosis module (2).

Installation note:

Replace gasket (3).

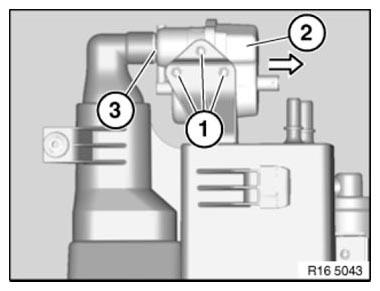

Fig 2: Identifying Diagnosis Module, Gasket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
