16 00.. Overview of fuel supply system

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

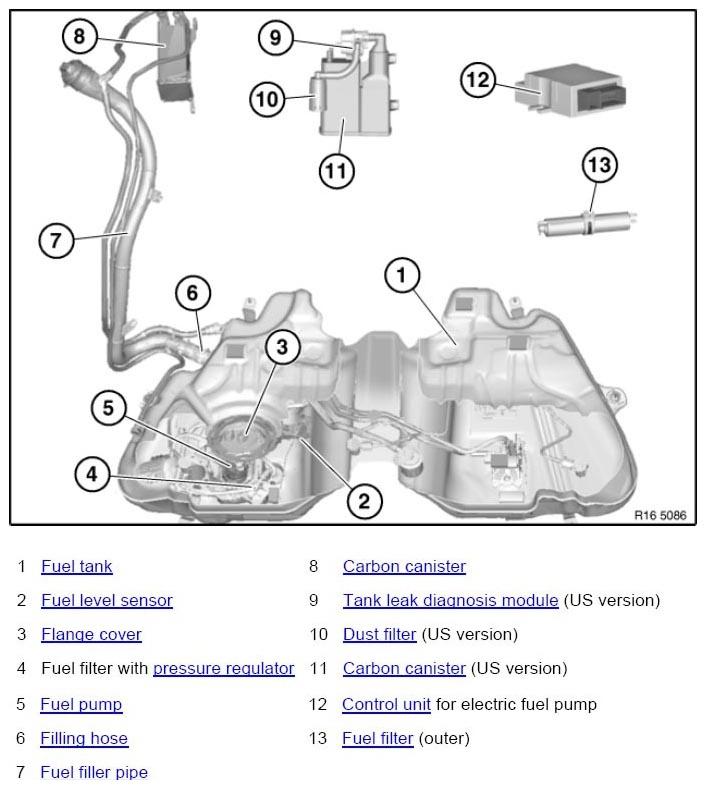

Fig 1: Overview Of Fuel Supply System
G08469809Courtesy of BMW OF NORTH AMERICA, INC.
