18 12 031 Replacing left or right rear silencer (N74)

Only perform these tasks after exhaust system has cooled down.

Support rear silencer with special tool 31 2 220 and a suitable universal lifter.

Fig 1: Supporting Rear Silencer Using Special Tool (31 2 220)

Courtesy of BMW OF NORTH AMERICA, INC.

Secure rear silencer against falling off.

Cut through exhaust pipes at marked point with a suitable tool.

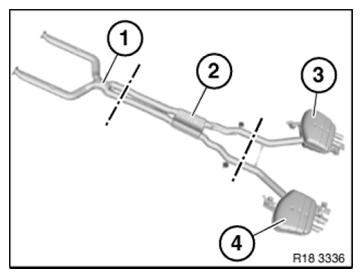

Fig 2: Identifying Rear Silencer Components

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows the left side, the procedure for the right side is identical.

Slacken nut (1).

Tightening torque: see 1AZ in 18 20 EXHAUST SYSTEM SUSPENSION

Fig 3: Identifying Left Side Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows the left side, the procedure for the right side is identical.

Detach hose (1) on vacuum unit.

Slacken nut (2).

Tightening torque: see 1AZ in 18 20 EXHAUST SYSTEM SUSPENSION

Lower and remove rear silencer with assistance of a second person.

Fig 4: Identifying Vacuum Unit Hose And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install, adjust new rear silencer and connect with hose clamp.

Centre clamp and tighten down.

Tightening torque: see 2AZ in 18 31 EXHAUST SYSTEM

The procedure is identical on both sides.

Fig 5: Identifying Rear Silencer Centre Clamp

Courtesy of BMW OF NORTH AMERICA, INC.
