31 12 134 Replacing rubber mount in left or right trailing link

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Rubber mount may only be renewed once!

Necessary preliminary tasks:

Check ball joints of trailing links while installed, replace TRAILING LINK if necessary.
Remove TRAILING LINK .

IMPORTANT: If the trailing link already features an identification mark with a center punch, it is necessary to replace the trailing link.

Mark trailing link with a punch mark in area (A).

Fig 1: Identifying Punch Mark Area On Trailing Link

Courtesy of BMW OF NORTH AMERICA, INC.

Using a press and special tools 33 3 322 and 31 3 032 , press rubber mount out of tension strut.

NOTE: Special tool 33 3 322 must be exactly flush with rubber mount bush.

Fig 2: Pressing Rubber Mount Out Of Tension Strut Using Press And Special Tools (33 3 322 And 31 3 032)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep rubber mount and bush in tension strut clean and free from grease.

Align rubber mount using notch to marking on trailing link and press in.

Fig 3: Aligning Rubber Mount Using Notch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

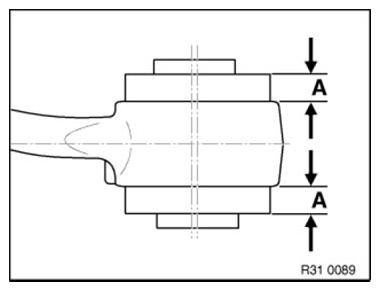

Protrusion (A) equally large.

Fig 4: Identifying Rubber Mount Protrusion
Courtesy of BMW OF NORTH AMERICA, INC.
