51 24 326 Removing and installing/replacing right tension spring with damper for tailgate

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove right LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

WARNING: Support tailgate in fully opened position with suitable apparatus. Danger of injury!

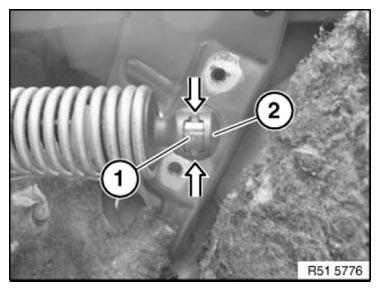

Press retainer (1) together.

Ball socket (2) jumps out of ball stud.

WARNING: The tailgate will drop down if it is not supported.

Fig 1: Pressing Ball Socket Retainer

G08472001

Courtesy of BMW OF NORTH AMERICA, INC.

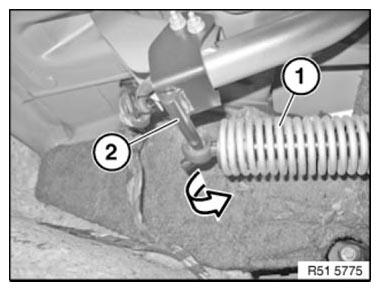

Unhook tension spring with damper (1) from tailgate hinge (2).

Fig 2: Removing Tension Spring With Damper From Tailgate Hinge

G08472002

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

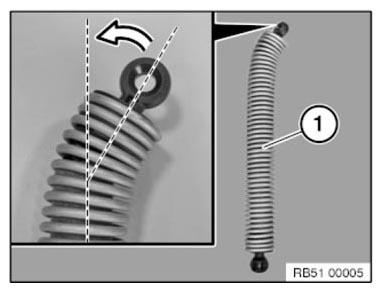

On refitting the tension springs (1), these have to be bent to the original condition by hand.

Fig 3: Bending Tension Spring

G08472003

Courtesy of BMW OF NORTH AMERICA, INC.

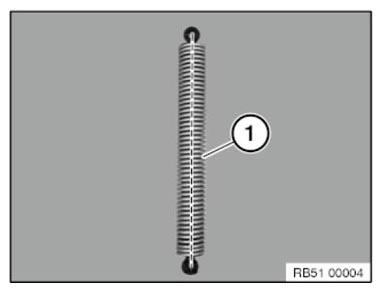

The graphic shows the tension springs (1) in original condition.
