51 13 282 Replacing trim strip on roof frame at left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

Necessary preliminary tasks:

Remove TRIM STRIP FROM ROOF FRAME

Unlock plastic mount (1) and simultaneously slide to one side.

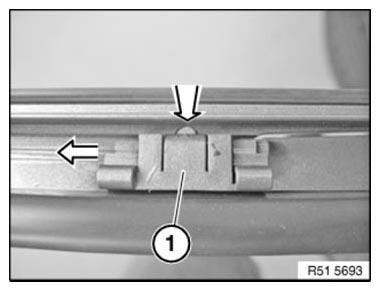

Fig 1: Removing Plastic Mount

G08471703

Courtesy of BMW OF NORTH AMERICA, INC.

Slide plastic mount (1) sideways out of trim strip.

Remove cover (2).

Installation:

Make sure cover is correctly seated in plastic mount.

Make sure plastic mounts are correctly engaged.

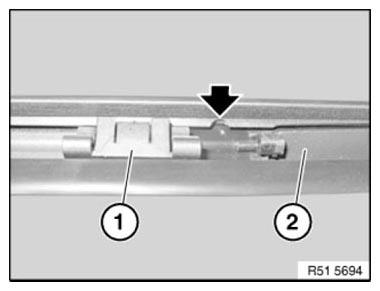

Fig 2: Identifying Plastic Mount And Cover

G08471704

Courtesy of BMW OF NORTH AMERICA, INC.

All retainers must be removed in order for seal (5) to be removed.

Glue molded part of seal (5) to trim strip (6) with Loctite 454 (sourcing reference: BMW Parts Service).

Coat rest of sealing channel of seal (7) with ANTISEIZE AGENT .

Fit seal (7) and press into end position with special tool 00 9 321 (fishbone).

Fit seal (8) without antiseize agent in compressed state.

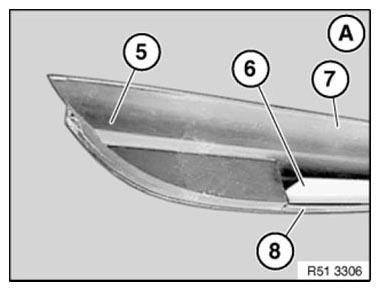

Fig 3: Identifying Trim Strip And Seals

G08471705

Courtesy of BMW OF NORTH AMERICA, INC.

Direction of travel, front

Installation:

New seals (7 and 8) are longer than trim strip (6).

After installation, compress seals (7 and 8) slightly.

Cut seals (7 and 8) to length at ends to trim strip (6).

Direction of travel, front

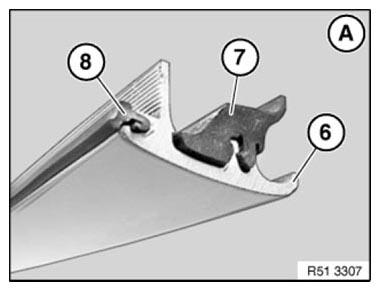

Fig 4: Identifying Trim Strip And Seals
Courtesy of BMW OF NORTH AMERICA, INC.
