Version with night vision

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

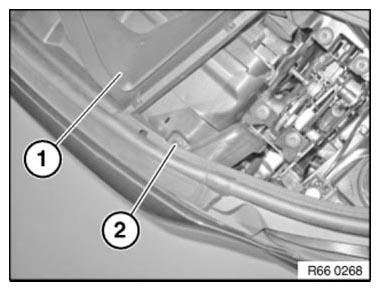

Fold cover (1) in seal mounting upwards as pictured.

Release camera fixing screw (2) and remove.

Fig 1: Identifying Cover And Camera Fixing Screw

G08471695

Courtesy of BMW OF NORTH AMERICA, INC.

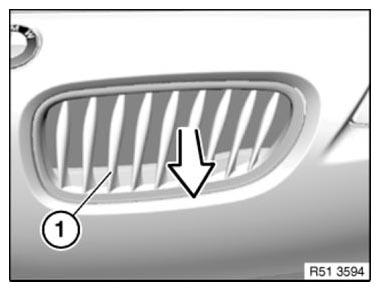

Press middle front radiator grille (1) upwards and pull in direction of arrow towards front.

Fig 2: Removing Front Radiator Grille

G08471696

Courtesy of BMW OF NORTH AMERICA, INC.

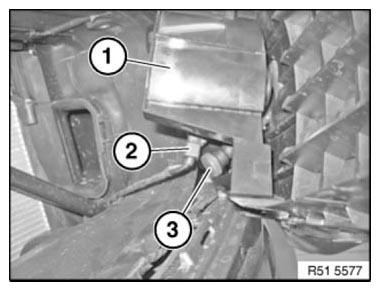

Release plug connection (2) and high-pressure nozzle line (3) on night vision camera (1).

Fig 1: Identifying Plug Connection, High-Pressure Nozzle Line And Night Vision Camera

G08471697

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

All catches and guides on middle front grille must not be damaged.

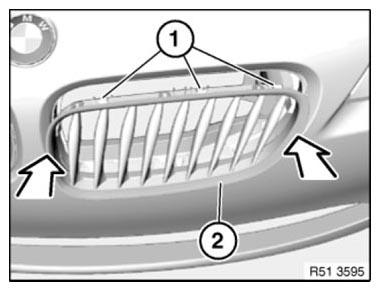

Press on chrome ring to push front radiator grille (2) into bumper trim.

Fixtures (1) must engage correctly.

Fig 2: Pushing Front Radiator Grille Into Bumper Trim

G08471698

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove NIGHT VISION CAMERA .
